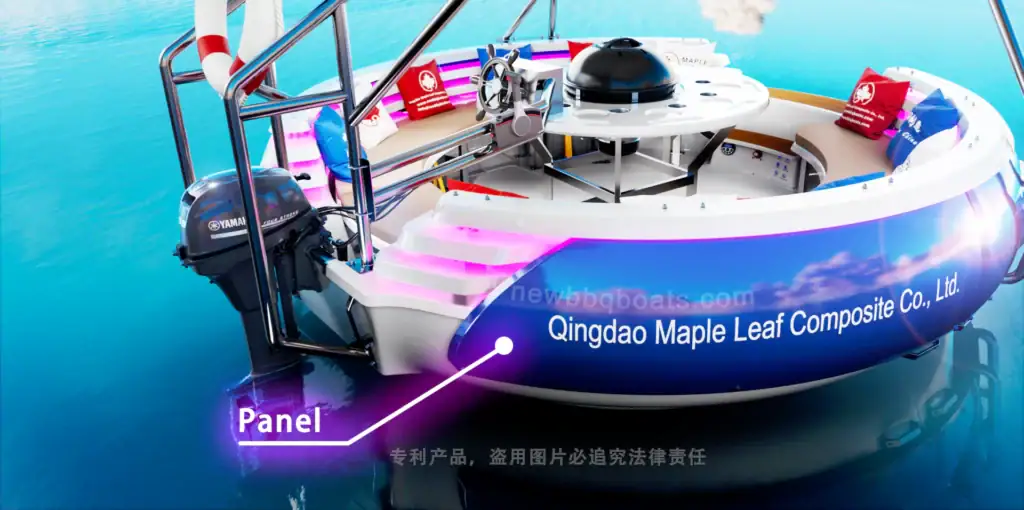

People always love firstly staring at the panels when they are searching information about the BBQ donut boat. As the big essence of BBQ boat, it contains lots of important information like the rental business contact, their logo, website, social media qr code, and their slogan. But do you know that the fiberglass panels can be used more than 50 years?
Learn more about fiberglass material.
BBQ Donut Boat Panels, The Most Comprehensive Information in Here!
BBQ Boat BQ350 Panels
Quantity: 4 panels per BBQ boat
Size: 75.59×22.44in (1.92×0.57m)
Thickness: 0.157in (4mm+)
Length overall: 302.36in (7.68m) 4 pcs
Gel coat brand: INEOS
Gel coat thickness: 0.0157in (0.4mm+)
Gel coat color options: 216
Temperature range: -112~248℉ (-80~120℃)
UV inhibitors: marine formula
Logo customization: free!
Gel coat color customization: free!

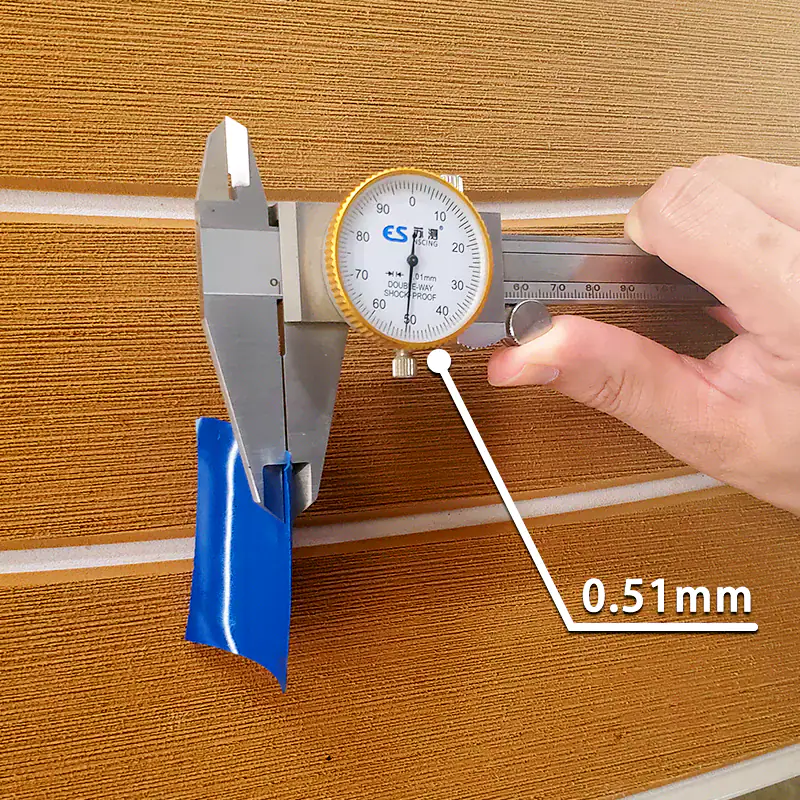

actual gel coat thickness measurement

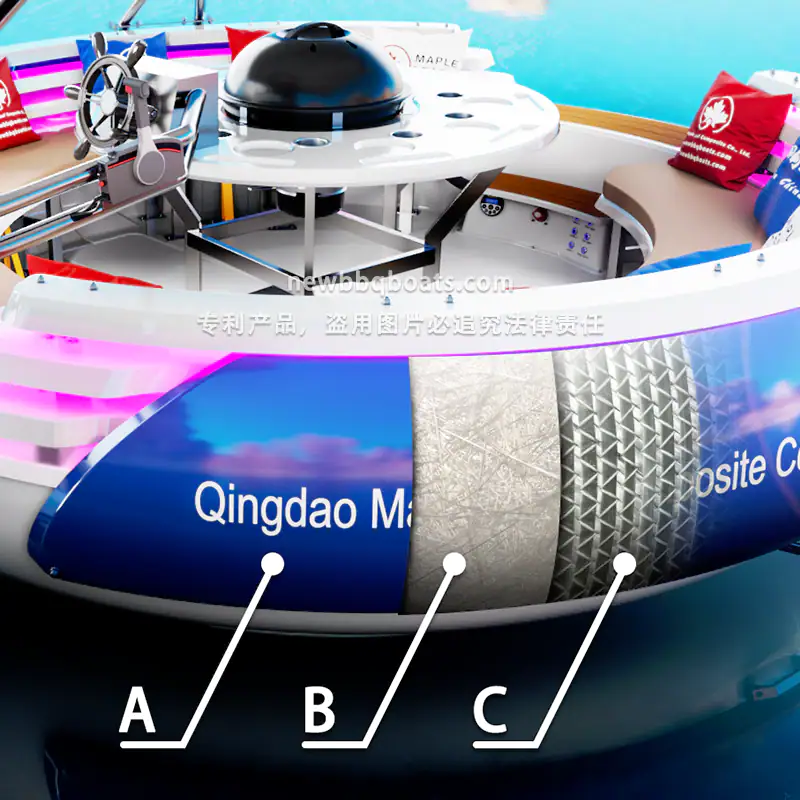

Fiberglass layers layout, the Standard of BBQ Donut Boat Manufacturing Process
A.It’s the gel coat which colors the outer layer of the whole panel with high-gloss, meanwhile it protects the BBQ donut boat from water and ultraviolet radiation.
B.2 layers of M300 chopped fiberglass mat.
These 2 layers support the gel coat gloss softly and delicately.
C.4 layers of WR900 woven fiberglass combo mat. Each layer contains one layer of fiberglass fabric and one layer of chopped fiberglass mat.
The UP resin, supplied by INEOS, is used as default for the new BBQ donut boat. If you want the resin with higher standard like VE or EP, that’s absolutely available! Because we are using vacuum resin infusion process to build the new BBQ donut boats, which almost covers various types of resins globally.
Note, if it’s the EP resin, we need to change the fiberglass material to match with it, for example the carbon fiber mat and fabric. So the prices could be different, A LOT!
The Customization of the New BBQ Donut Boat Panel
Unlike other BBQ boat manufacturers, customizing gel coat colors with us is completely free and faster.
The reason they charge the customization is that a bucket of 20~25kg gel coat can be sprayed onto like 32~40 panels, that’s 8~10 BBQ donut boat you need to order from them at once. Otherwise the gel coat expires in 30~90 days depending on different formulas. One little order with just 2 BBQ boats? They would rather use the extra charge to let you give up the customization ideas.
Why do we offer you the customized service for free?
Firstly, we understand how difficultly you are going through including finding the right location for your BBQ donut boat rental business, the local marketing, the boats malfunction to fix, and racking your brain to serve clients better, etc. No matter it’s just one BBQ boat or two, we will be there and trying our best to be supportive!!!
Secondly, even there’s lots of gel coat left in the bucket, don’t worry, we can spray it all on some other fiberglass parts before it expires. As we have many orders to hedge the waste.
Thirdly, we have a very supportive INEOS supplier here in Qingdao, China. We can get a better price than the other competitors do.
The Gel coat Spray Gun is Extremely Important to the BBQ Donut Boat Quality
Let’s watch the video first.
The worker was spraying gray gel coat on the old BBQ donut boat deck molds. Here we are not talking about the spray tricks, it’s the spray gun itself. We call this the Shiahu Gun in China which means the spray gun with its pressure cup at bottom, actually it’s siphon feed spray gun.
The gel coat viscosity ranges from 0.8 to 1.3 at 77℉, 25℃. It’s stickier than honey. How can he spray it out with a 3.5mm nozzle?
Our workers once used lots of siphon feed spray guns in the past, such as W77, 2.5mm Japan Anest Iwata, W77, 3.0 Taiwan Prona, even W77, 4.0 Jiangsu Heike.
Without acetone diluted, none of them can spray out the gel coat successfully. But with the acetone mixed with the gel coat, the BBQ donut boat outer layer will be very soft and there will be thousands of tiny air holes in the surface of the BBQ boat. You can barely tell the difference from the outside unless you use a magnifier.
In addition, the acetone lowers the gel coat viscosity which breaks the solid bonding with the inner resin and fiberglass mat. But on the manufacturer side, they can save some costs with the acetone.
Theoretically, as the acetone evaporates, the viscosity of the gel coat will recover a little bit, but it will never get back to the original factory viscosity.
Plus, in the old model of the BBQ donut boat production, the workers must manually apply the first 2 layers of FRP mat before the gel coat gets all cured. So in reality, the acetone never evaporates completely.
“So what is the big deal? Just small holes and low viscosity.”
Yeah, when thousands of small holes at the BBQ donut boat bottom, the water could seep inside very slowly and silently, the whole process could last for 2~5 years until you feel the boat is getting heavier and heavier lately.
Experiment: when high-strength epoxy resin meets acetone
"Well, is there any better solution? We still want to buy the BBQ donut boat."

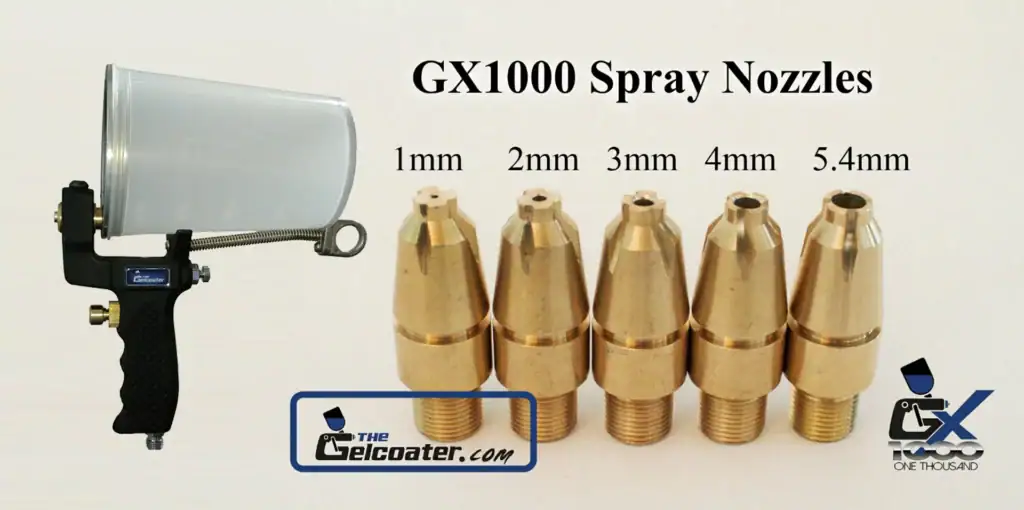

For sure, if your budget is limited and you still want to try the older BBQ donut boat from China, please force the factory to use the cup gun GX1000, 5.4mm nozzle, it’s absolutely affordable. And tell them do not use acetone!!! And ask for the full videos records for your boats manufacture process, otherwise, they won’t follow your orders.

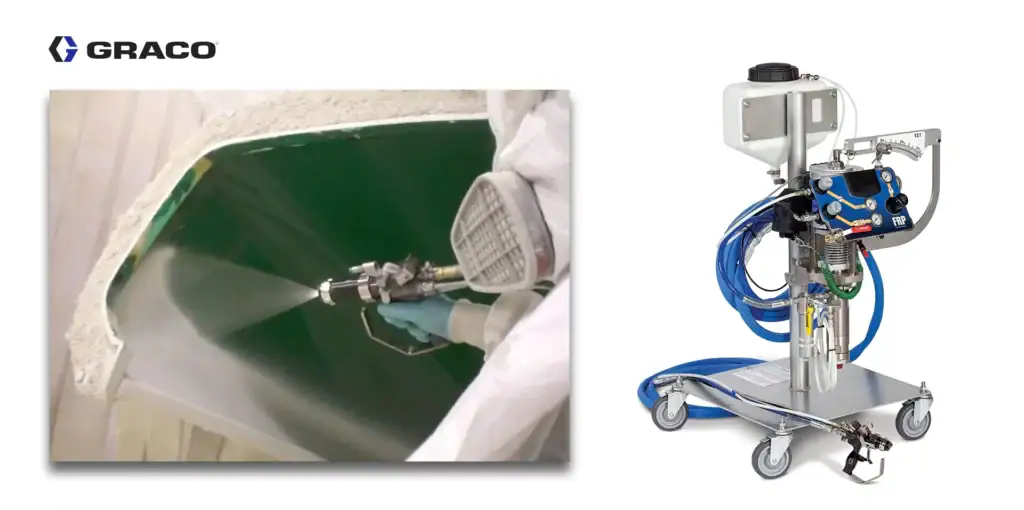

Another best solution is the U.S. Graco gel coat system which is quite expensive but the BBQ boat surface will be extremely hard, smooth and glossy and without any air holes. It doesn’t need acetone at all!
Learn more about Graco
Alright, what we’ve learned so far. Next time when someone’s telling you how professional they are, just check what spray gun they are using, you could tell what they are really capable of.
